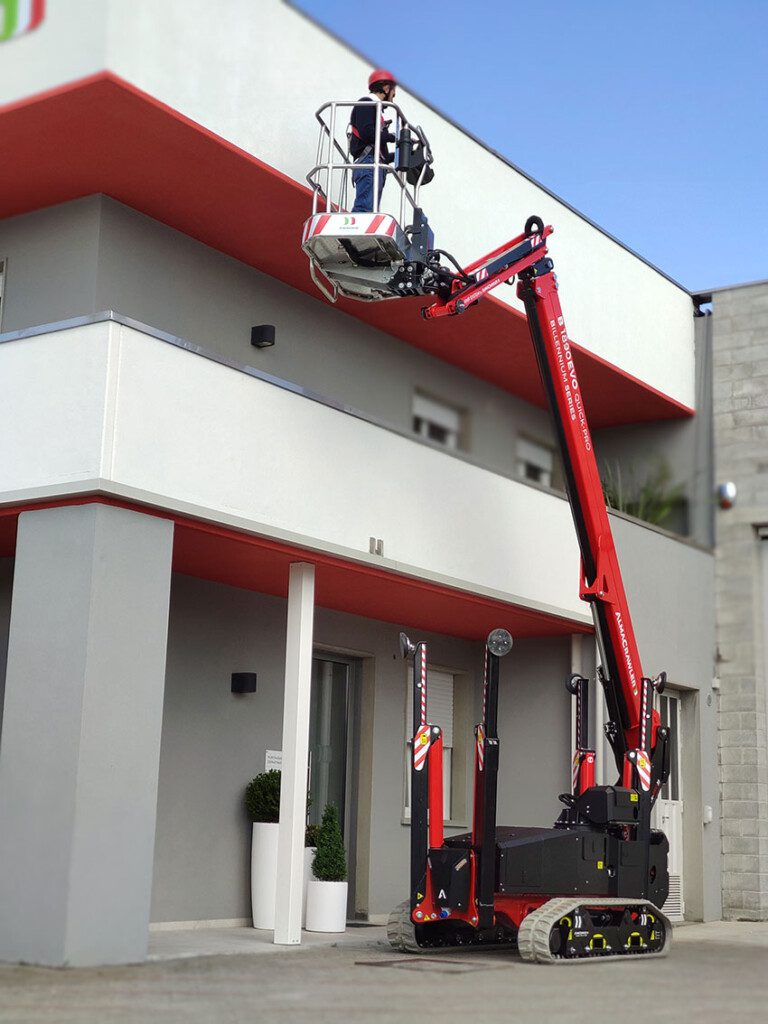

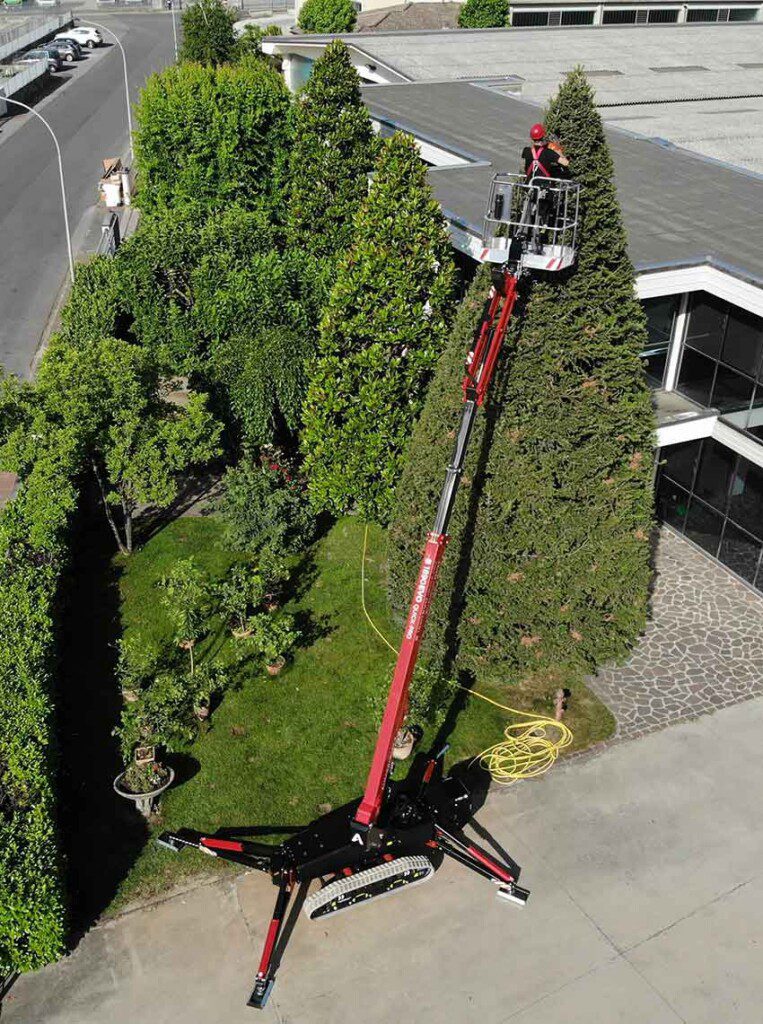

CPL stock the 18m Almac Spider Boom

CPL have stock of the Billennium 18m Almac Spider Boom.

The B1890 QUICK-PRO EVO platform, equipped with a YANMAR 2TNV70 diesel engine, allows operators to reach up to 18 metres in height, with a maximum outreach of more than 10 metres and a slewing angle of +/- 185°. The basket can rotate up to 70° and can carry a weight of 250kg.

The “XXL Undercarriage” of the B1890 QUICK-PRO EVO has been specifically designed to increase safety in daily loading/unloading and platform movement operations, while respecting the typical compactness characteristics (variable track width 0.79÷1.39 m and undercarriage length of over 2 m).

Among the other different features of this Almac Spider Boom model, there are several technologies that make this platform exclusive in its kind, such as:

• Self-Propelled Skilled System – SPS, a technology that allows the platform to be used on longitudinal slopes of up to 10° and lateral slopes of up to 5° in complete safety without the use of outriggers;
• Automatic Tensioner System – ATS, hydraulic track tensioning system
• Adaptive Working Performance – AWP, outreach performance technology based on the effective stabilisation area.

**CPL and Almac have worked together to implement our leading plastic basket on this 18m Spider. The basket allows 1KV protection for the operator. **

Quick-PRO fully automatic stabilisation system

The Quick-PRO is a new** automatic stabilisation configuration system that allows 6 different machine positioning configurations to be selected directly from the control panel** via a special selector switch. Thanks to the telescopic stabilisers, it is possible to choose between a narrow stabilisation area of 4.29 m x 2.76 m, a wide stabilisation area of 4.97 m x 3.65 m and 4 different partial stabilisation areas.

If you would like a demonstration of this model, or any of our Almac stock units, contact us to book.
