20m Articulated Aerial Platform
20m · articulated
UK-built
LOLER compliant
Type approved

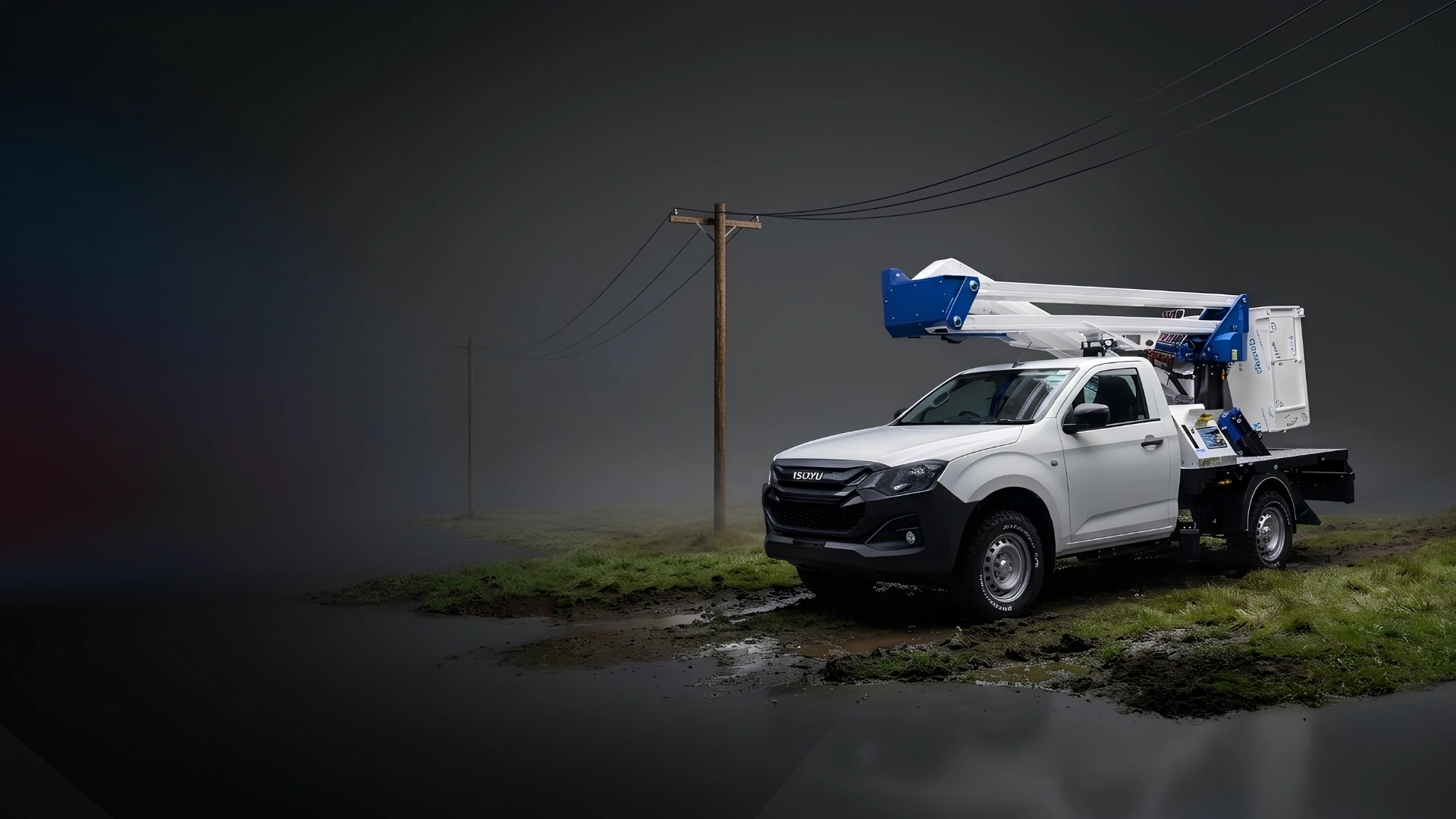

A 19.9m articulated truck-mounted platform on a 3.5t chassis (Isoli), with 8.4m outreach and a 230kg basket. Features 400° turret rotation, hydraulic basket levelling and 90°+90° cage rotation. Articulated geometry suits up-and-over access.
Specification
| Arm | Articulated |
| Brand | Isoli |
| Max outreach | 8.4 m |
| Cage rotation | 90°+90° |
| Vehicle weight | 3.5t |
| Basket max load | 230 kg |
| Turret rotation | 400° |
| Max working height | 19.9 m |
